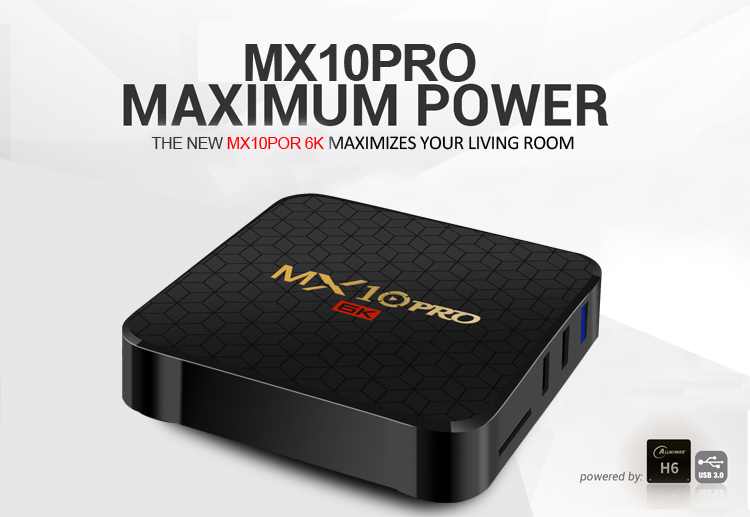

MX10 PRO Allwinner H6

Allwinner H6 Quad Core 64-bit ARM Cortex-A53 Smart TV Box

6K High definition with very good price and well-kowning design


Next: None

Previous: R-TV BOX X10 PLUS Allwinner H6

R-TV BOX MX10 PRO Android TV Box

R-TV BOX MX10 PRO Android TV Box

R-TV BOX MX10 PRO Android TV Box

R-TV BOX MX10 PRO Android TV Box

R-TV BOX MX10 PRO Android TV Box



Android OSAndroid 9.0 os
CPUAllwinner H6 Quad Core 64-bit ARM Cortex-A53
GPUHigh-performance multi-core GPU Mali T720
RAM4GB DDR3(optional 2GB)
Memory size32GB EMMC (optional 16/64GB)
LanguageChinese,English...Multi-Language support
Storage ExtensionSupport MicroSD(TF) ,Up to 128GB
WIFIIEEE 802.11a/b/g/n,  2.4G (optional 2.4G/5G/AC)
EthernetStandard 10/100M  RJ-45 (optional 1000M LAN)
Media format:
3DHardward 3D graphics acceleration
Support Media formatAvi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Support Music formatMP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
Support Photo formatHD JPEG/BMP/GIF/PNG/TIFF
Support Decoder formatVP9-10 Profile-2 up to 6K@30fps
H.265 HEVC MP-10@L5.1 up to  6K@30fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P @60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file
HD MPEG1/2/4,H.264, HD
AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
4K2k HD decoding6K H.265 Hardware Video Decode and 6K Output
High Difinition video outputSD/HD max. 6K pixel
2.4G Remote ControlBuilt in 2.4G Remote Control for Option
Mouse/ KeyboardSupport mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
HDMIHDMI 2.0a for 4k@60Hz
AVSupport

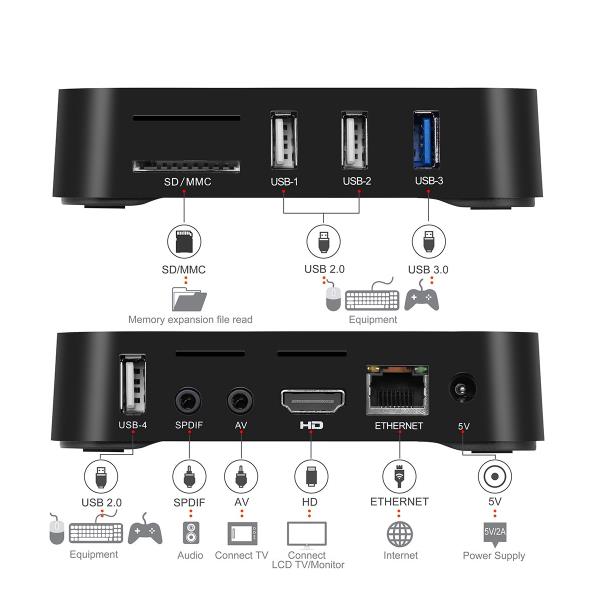

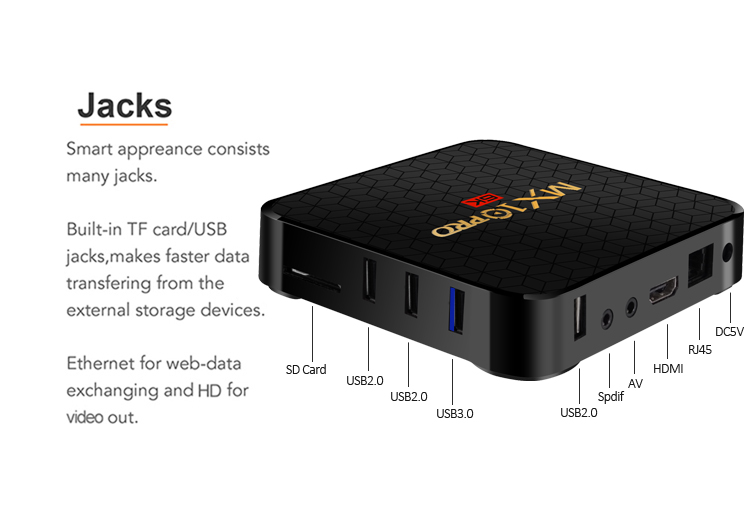

Interface:
1*HDMI 2.0HDMI 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max
resolution output
1*Mirco SD Card (TF)TF cards (up to 128GB)
4*USB HOST3*USB 2.0,1*USB3.0,support USB DISK and USB HDD
1*SPDIFSupport Audio coaxial
1*RJ45Ethernet:10/100M, standard RJ-45
1*Digital display tubeDigital display tube
1*Power input5V/2A
Accessories:
power  charger1
Remote Control1
giftbox 1
User Manual1
HDMI cable1
Air mouseoptional
wireless mouseoptional
Packing:
Product size120*120*28mm
Net weight400g
Gift Box Size130*130*80mm
Carton Box Size422*413*278mm
Packing quantity30PCS/CTN



*
*
*
*
*
*
*
