Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging
  • Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

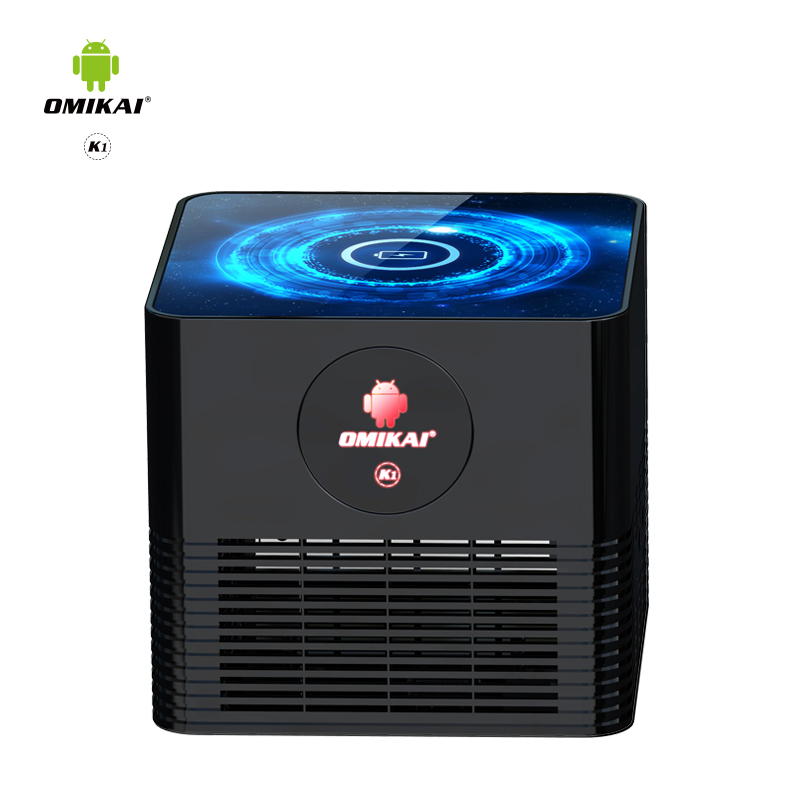

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging


Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

OS:Android 10.0

BT:bluetooth 5.0

support wireless charging

intelligent cooling fan

Seven color breathing light

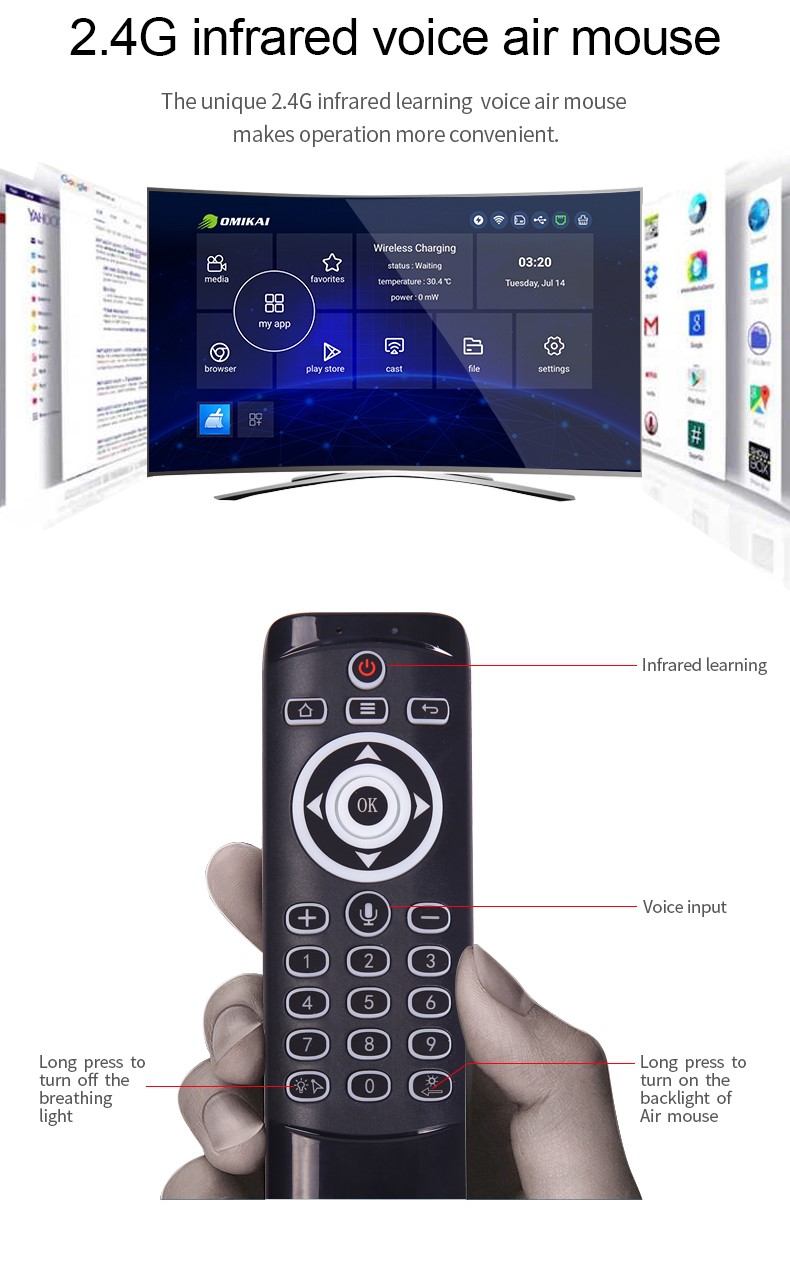

2.4G voice remote control(Support air mouse function)


Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Omikai K1 New TV BOX Allwinner Android 10 os BT 5.0 Wireless charging

Android OSAndroid 10.0 os
CPUQuad-Core  Cortex-A53
GPUG31 MP2     Supports OpenGL ES 3.2/2.0/1.0,Vulkan 1.1,OpenCL 2.0
RAM4GB DDR3(optional 2GB)
Memory size32GB EMMC (optional 16/64GB)
LanguageChinese,English...Multi-Language support
Storage ExtensionSupport MicroSD(TF) ,Up to 128GB
WIFIIEEE 802.11a/b/g/n/ac,  2.4G/5.8G/BT5.0
BTSupports BT 5.0,BLE,and ANT+and backward compatibility with BT1.X and BT 2.X+Enhanced Data Rate
EthernetStandard 10/100M/1000M  RJ-45
Media format:
Support Decoder formatVP9-10 Profile-2 up to 6K@30fps
H.265 HEVC MP-10@L5.1 up to  6K@30fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P @60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file
HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Support Media formatAvi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Support Music formatMP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
Support Photo formatHD JPEG/BMP/GIF/PNG/TIFF
HDRSupports 10-bit processing path for HDR video
USB host2*USB
Card readerTF cards
HDD file systemFAT16/FAT32/NTFS
Support SubtitleSRT/SMI/SUB/SSA/IDX+USB
High Definition video outputSD/HD max. 6K  pixel
OSD type of languagesEnglish/French/German/Spanish/Italian/ etc multilateral languages
LANEthernet:10/100/1000M standard RJ-45
2.4G voice flying mouseBuilt in 2.4G voice flying mouse
Mouse/ KeyboardSupport mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

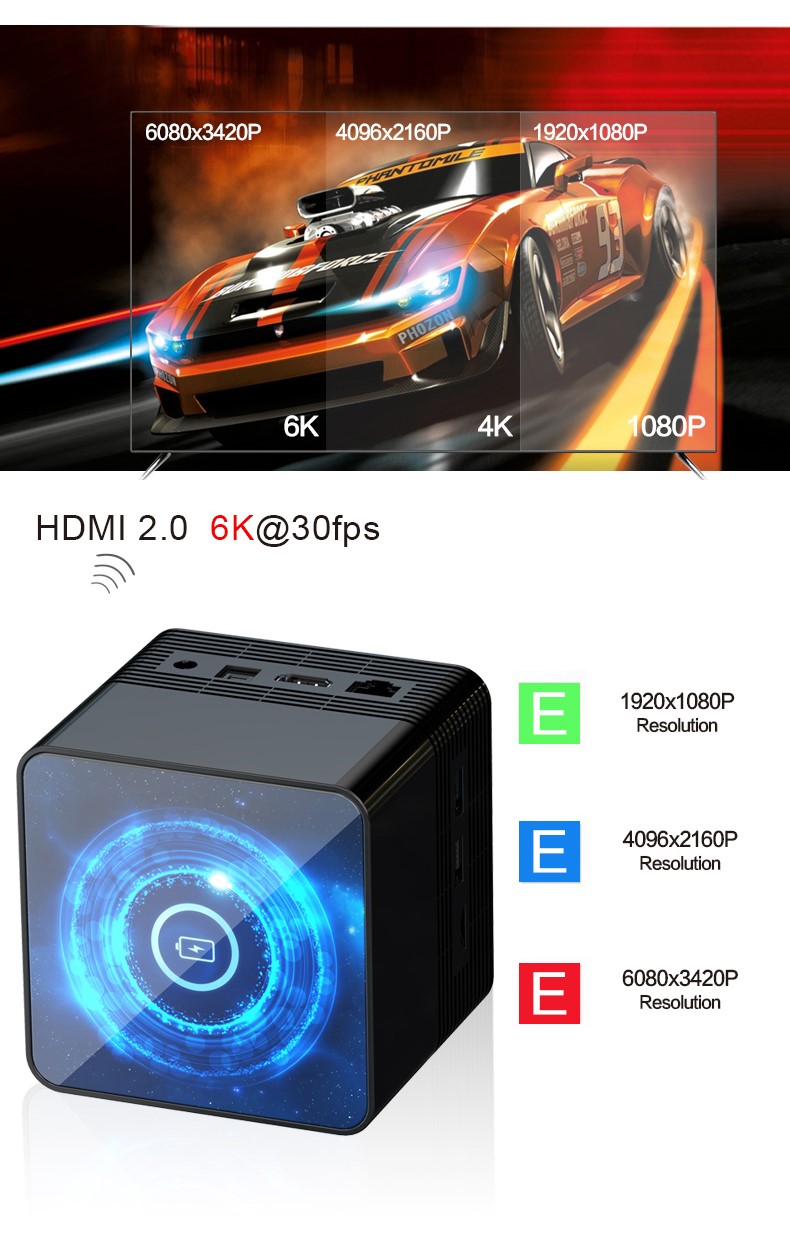

HDHD 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max
resolution output
4K2k hd decoding6K H.265 Hardware Video Decode and 6K Output
3DHardward 3D graphics acceleration
AVSupport
Wireless charging Specifications:
Wireless charging standardQi-BPP/Samsung /Apple rapid fast Charging
Input PowerDC12V/1.5A
Input voltage12V
power interfaceMicro-A
Maximum output10W
Charging efficiency>75%
Static power< 0.2W@5V,< 0.3W@15V
Charging heightCoil to Coil 3-8mm
charging area10mm*10mm
Supports rechargeable devices1 piece
Product certificationCE/FCC/Qi-BPP
coil typeMP-A11
Number of coils1piece
System working temperature0°~+35℃
System storage temperature‘-40°~+85℃
Protection functionOvercurrent protection, overvoltage protection, undervoltage protection, overpower protection, overtemperature protection, foreign matter detection, DPL, etc
Interface:
1*HD 2.0 with CECHD 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max
resolution output
1*Mirco SD Card (TF)TF cards (up to 32GB)
2*USB HOST2*USB ,support USB DISK and USB HDD
1*OpticalOptical output
1*Silent fanSilent fan cooling
1*RJ45Ethernet:10/100M/1000M, standard RJ-45
1*Wireless chargerWireless charging
1*Colorful breathing lampColorful breathing lamp display
1*Power input12V3A


*
*
*
*
*
*
*
