R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328
  • R-TV BOX S10 MINI Rockchip RK3328

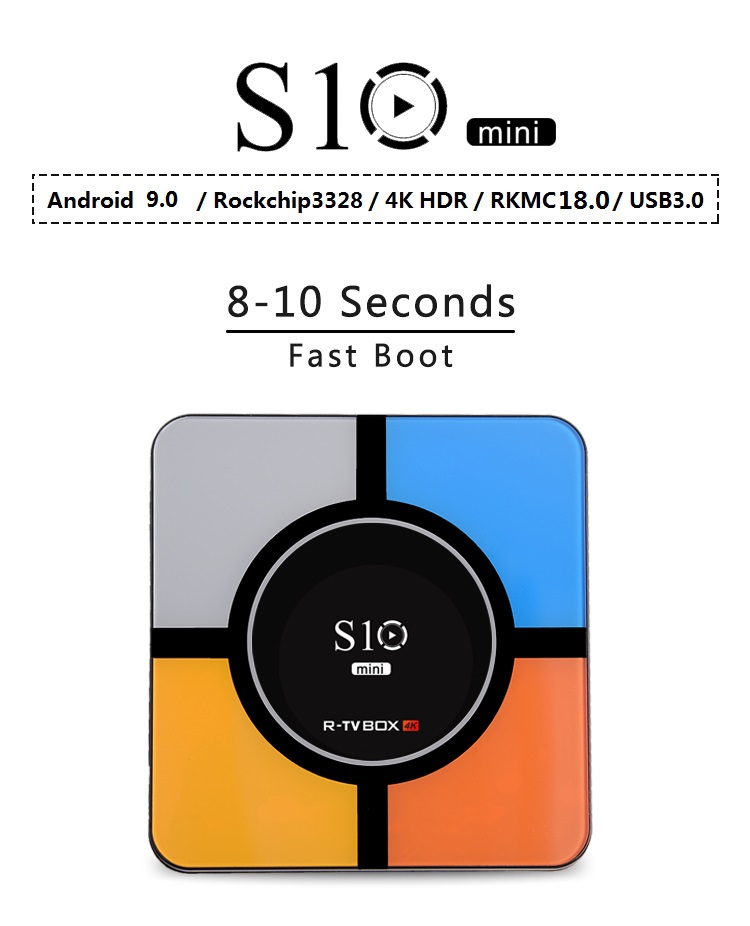

R-TV BOX S10 MINI Rockchip RK3328

Rockchip RK3328 Quad-Core 64bit Cortex-A53

Voice Control Intellegent Andoid TV Box has Unique UI design.

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box

R-TV BOX S10 MINI Wireless Charging 4K Android TV Box


Android OSAndroid 9.0 os
CPURK3328 Quad-Core 64bit Cortex-A53
GPUPenta-Core Mali-450 Up to 750Mhz+
RAM4GB DDR3(optional 2GB)
Memory size32GB EMMC (optional 16/64GB)
LanguageChinese,English...Multi-Language support
Storage ExtensionSupport MicroSD(TF) ,Up to 128GB
WIFIIEEE 802.11a/b/g/n,  2.4G
EthernetStandard 10/100M  RJ-45
Media format:
Support Decoder format4K VP9 Video decoder,  H.265/H.264 video decoder 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8)
Support Media formatAvi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Support Music formatMP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE
Support Photo formatHD JPEG/BMP/GIF/PNG/TIFF
HDRHDR10 and HLG modes
USB host1*High speed USB 3.0  3*USB 2.0
Card readerTF cards
HDD file systemFAT16/FAT32/NTFS
Support SubtitleSRT/SMI/SUB/SSA/IDX+USB
High Definition video output4K (4096x2160 pixel )
OSD type of languagesEnglish/French/German/Spanish/Italian/ etc multilateral languages
LANEthernet:10/100 standard RJ-45
2.4G Remote ControlBuilt in 2.4G Remote Control for Option
Mouse/ KeyboardSupport mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
HDMIHDMI 2.0a for 4k@60Hz
3D3D video formats
AVSupport
Interface:
1*HDMI 2.0 with CECBuilt-in HDMI 2.0 transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output
1*Mirco SD Card (TF)TF cards (up to 32GB)
4*USB HOST3*USB 2.0,1*USB3.0,support USB DISK and USB HDD
1*SPDIFSPDIF output
1*RJ45Ethernet:10/100M, standard RJ-45
1*Digital display tubeDigital display tube
1*Power input5V/2.5A



*
*
*
*
*
*
*
