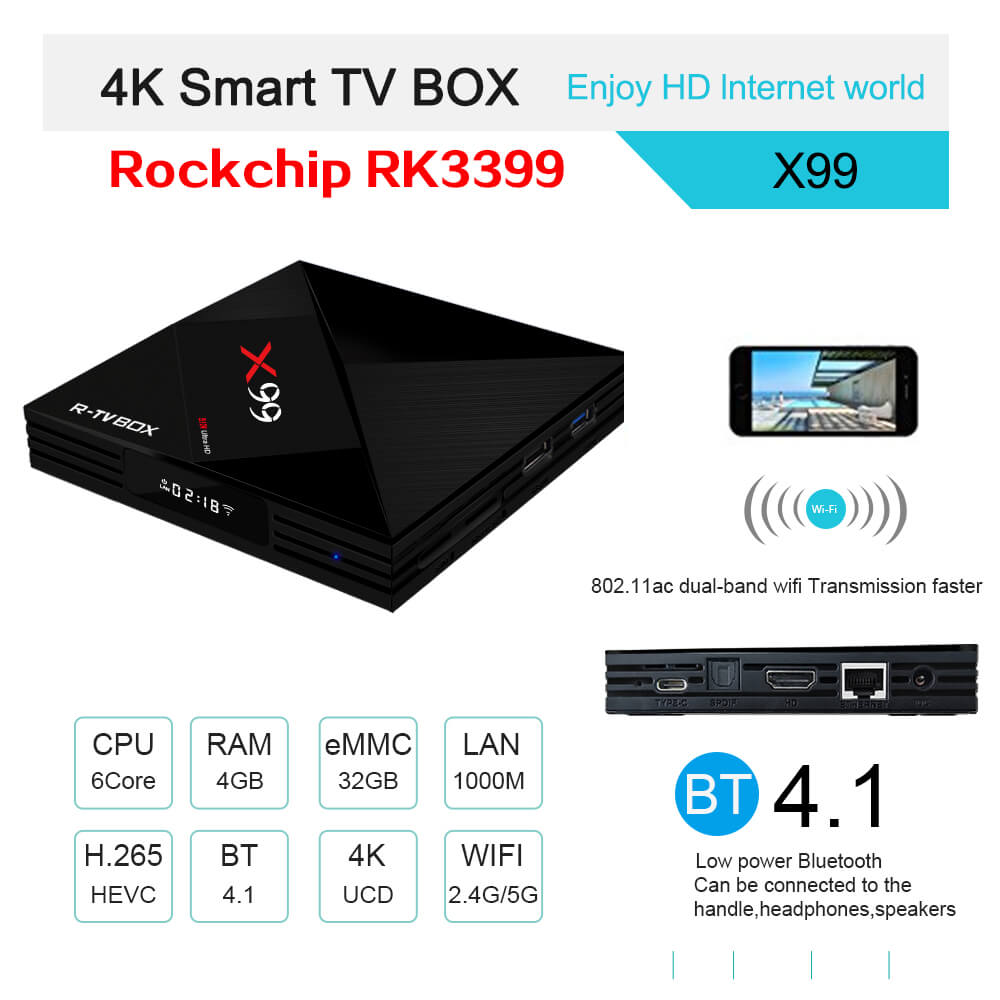

CPU RK3399-6 cores 64-bit,Dual Cortex-A72 big-core+Quad Cortex-A53 small-core @2.0GHz
GPU+OS ARM Mali-T860 high-performance GPU quad-core 800MHZ / Android 7.1
RAM Dual-channel DDR3 4GB (optional 1-4GB)
ROM Supporting EMMC 5.1, SDIO3.0 32GB (optional 8-64GB)
Network Ethernet:10/100/1000M standard RJ-45
WIFI WiFi+Bluetooth , IEEE 802.11a/b/g/n, 2.4G/5.8G
Power DC 5V/3A
Control 2.4GHz Wireless&Air Mouse (optional Remote Controller )
Output Type-c port OTG, USB3.0*1,USB2.0*1,TF card ,HDMI,A&V.RJ-45
4G SIM Card Optional Built-in 4G SIM Card
Unit Size:114.5 x 114.5 x 23 mm Gift Box Size:208x140x66mm 20PCS/CTN
Next: R-TV BOX S10 Rockchip RK3328
Previous: H96 Max RK3528
| Android OS | Android 7.1.2 os | |
| CPU | RK3399-6 cores 64-bit | |
| Dual Cortex-A72 big-core+Quad Cortex-A53 small-core | ||
| 2.0GHz | ||
| GPU | ARM Mali-T860 high-performance GPU quad-core 800MHZ | |
| Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 | ||
| Support AFBC (frame buffer compression) | ||
| RAM | 4GB DDR3(optional 2GB) | |
| Memory size | Support eMMC 5.1, SDIO3.0 32GB EMMC (optional 16/64GB) | |
| 4G SIM | Optional 4G SIM CARD | |
| Language | Chinese,English...Multi-Language support | |
| Storage Extension | Support MicroSD(TF) ，Up to 128GB | |
| WIFI | I2.4G /5G dual-band Wifi, IEEE 802.11 a/b/g/n/ac | |
| Ethernet | Standard 10/100M/1000M RJ-45 | |
| Bluetooth | Support BT4.1 | |
| Media format: | ||
| Multimedia | Support 4K VP9 and 4K 10bits H265/H264 video decoding，up to 60fps | |
| 1080P multi-format video decoding (WMV, MPEG-1/2/4,H264, VP8) | ||
| Support Decoder format | 4K VP9 Video decoder, H.265/H.264 video decoder 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) | |
| Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | |
| Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | |
| Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF | |
| HDR | HDR10 and HLG modes | |
| Type-C | Type-c port, support OTG, support DisplayPort 1.2 (up to 4K 60Hz) | |
| USB host | 1*High speed USB 3.0 1*USB 2.0 | |
| Card reader | TF cards | |
| HDD file system | FAT16/FAT32/NTFS | |
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | |
| High Definition video output | 4K (4096x2160 pixel ) | |
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages | |
| LAN | Ethernet:10/100/1000M standard RJ-45 | |
| 2.4G Remote Control | Built in 2.4G Remote Control | |
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle | |
| HDMI | HDMI 2.0a for 4k@60Hz | |
| 3D | 3D video formats | |
| AV | Support | |
| Interface: | ||
| 1*HDMI 2.0 with CEC | Built-in HDMI 2.0 transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output | |
| 1*Type-c | Type-c port, support OTG, support DisplayPort 1.2 (up to 4K 60Hz) | |
| 1* 4G SIM Card | 4G SIM Card Optional | |
| 1*Mirco SD Card (TF) | TF cards (up to 32GB) | |
| 2*USB HOST | 1*USB 2.0,1*USB3.0,support USB DISK and USB HDD | |
| 1*SPDIF | SPDIF output | |
| 1*RJ45 | Ethernet:10/100M/1000M, standard RJ-45 | |
| 1*Digital display tube | Digital display tube | |
| 1*Power input | 5V/3A | |
