CPU | Allwinner H713 |
| Quad-core ARM Corex-A53 |
Product Color | Metallic grey / White |
Product Size | 278*251*110MM |
RAM | 2GB |
ROM | 8GB |
WIFI | MIMO WI-FI 2.4GHz/5.0GHZ 802.11 a/b/g/n/ac |
Interface | USB*1、HDMI In*1、headphone jack*1、AC*1 |
Previous: None

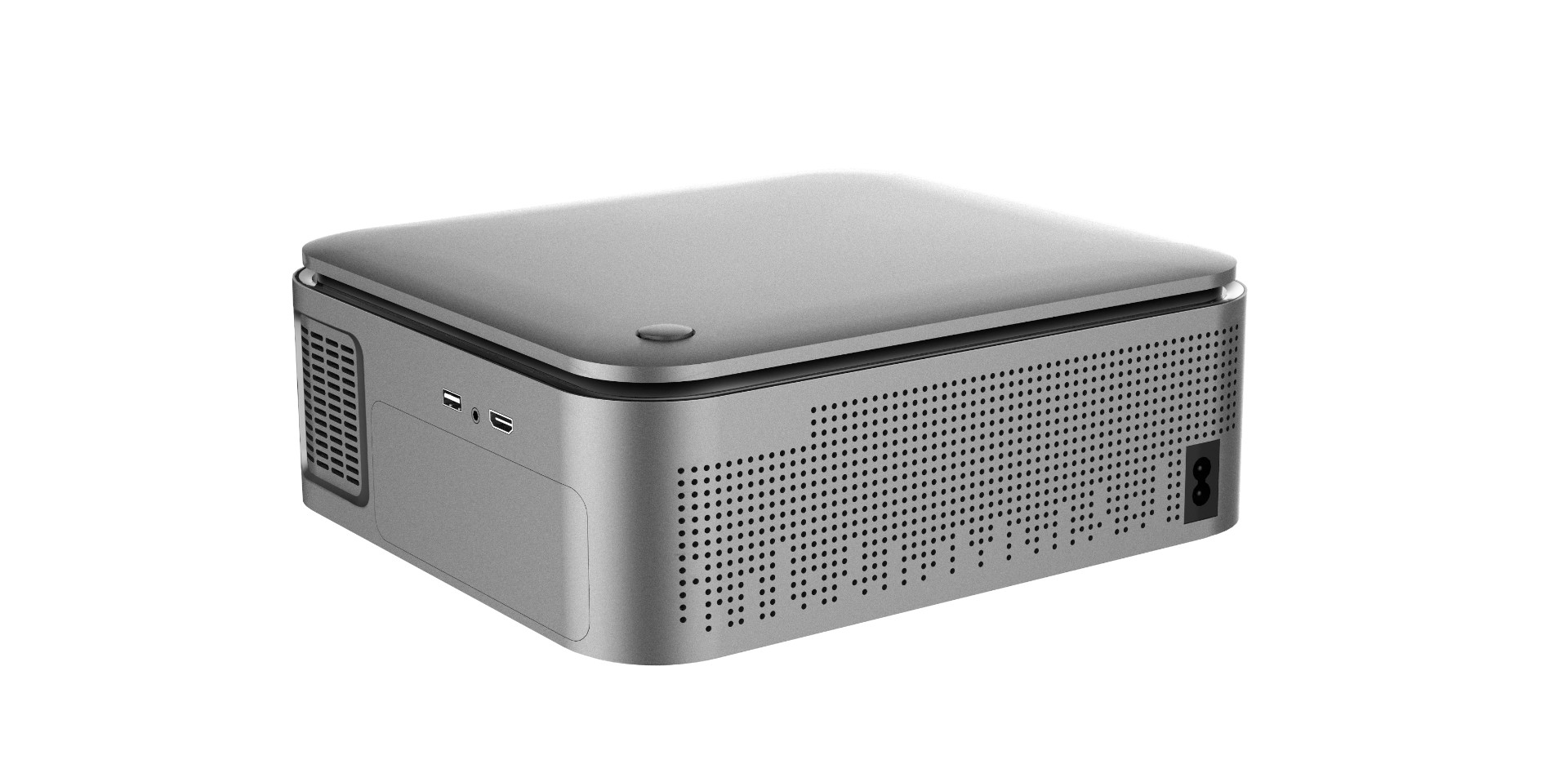

| Product specification | |
| HY500-ATV version | |
| 1080P LCD projector | |
| Product color | Metallic grey / white |
| Product Size | 278X251X110MM |
| Native Resolution | 1080P (1920X1080) |
| Color Temperature | 8000K（±10%） |
| Brightness(Lumens) | 250LM |
| Contrast Ratio | 2000 |
| Uniformity | 88% |
| Aspect Ratio | 16:9 & 4:3 |
| Throw Ratio | 1.37:1 |
| Trapezoidal correction | Manual Trapezoidal correction |
| Language | Support for multiple languages |
| Bulb Life | 30000 Hrs more than |
| Lamp type | white LED |
| Adjustment Mode | Automatic focusing/remote control electric focusing |
| Operation Mode | Button pannel and remote control |
| Projection Distance | 1.2-4M |
| Projection Size | 40-150 inch |
| Same screen image | Eshare/Airplay/MiraCast |
| system | Android 10 |
| CPU | Allwinner H713 |
| Quad-core ARM Cortex-A53 | |
| GPU | Mali-G31 supports OpenGL ES3.2,Vulkan 1.1,and OpenCL2.0 |
| Buffer Memory(RAM) | 2GB |
| Storage(ROM) | 8GB |
| WIFI | MIMO Wi-Fi 2.4GHz/5.0GHz 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 4.2/5.0 |
| Video format | H.265 10-bit 4K*2K@60fps, VP9 4K*2K @60fps, AVS2-P2 up to 4K*2K@60fps H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1,AVS+, RealVideo8/9/10 |
| Music format | MP3, AAC, WMA, RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc. |
| Picture format | HD JPEG/BMP/PNG etc. |
| Key control | Power on button |
| remote control | ATV special Bluetooth remote control |
| Speaker | DSP 5WX2 |
| Bluetooth audio | Support |
| Optical and mechanical power consumption | 100W |
| Overall power consumption | 120W |
| Working Voltage(V) | AC90-260V/50-60HZ |
| Interface | USB X1、HDMI In X1、headphone jack X1、AC X1、 |
| Power indicator | LED（Power-on red, power-on green） |
| Projection mode | Forward/rear projection |
| standby power | 2.5W |
| Standard Accessory | gif box、Remote control、power cable、HDMI cable、manual |
