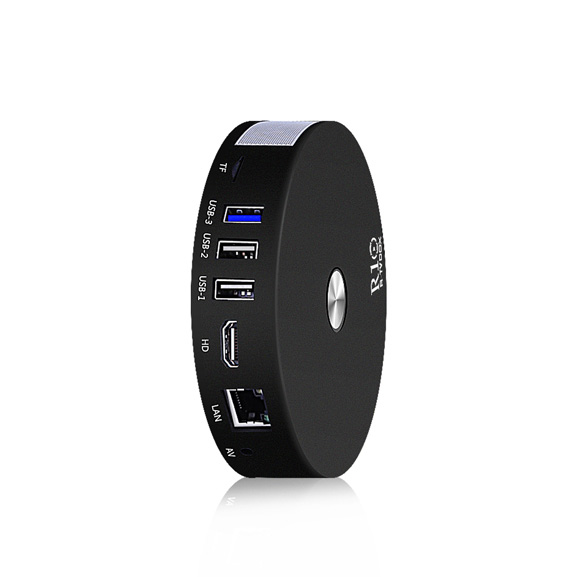

Rockchip RK3328 Quad-Core 64bit Cortex-A53 Smart OTT TV Box and it has High performance customized design.
Next: MX10 Rockchip RK3328
Previous: H96 Max RK3528
| Android OS | Android 9.0 os | |
| CPU | RK3328 Quad-Core 64bit Cortex-A53 | |
| GPU | Penta-Core Mali-450 Up to 750Mhz+ | |
| RAM | 4GB DDR3(optional 2GB) | |
| Memory size | 32GB EMMC (optional 16/64GB) | |
| Language | Chinese,English...Multi-Language support | |
| Storage Extension | Support MicroSD(TF) ，Up to 128GB | |
| WIFI | 2.4G/5G/AC 802.11 b/g/n BT4.1 2T2R | |
| Ethernet | Standard 10/100M/1000M RJ-45 | |
| Media format: | ||
| Support Decoder format | 4K VP9 Video decoder, H.265/H.264 video decoder 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) | |
| Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | |
| Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | |
| Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF | |
| HDR | HDR10 and HLG modes | |
| USB host | 1*High speed USB 3.0 2*USB 2.0 | |
| Card reader | TF cards | |
| HDD file system | FAT16/FAT32/NTFS | |
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | |
| High Definition video output | 4K (4096x2160 pixel ) | |
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages | |
| LAN | Ethernet:10/100/1000M standard RJ-45 | |
| 2.4G Remote Control | Built in 2.4G Remote Control for Option | |
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle | |
| HDMI | HDMI 2.0a for 4k@60Hz | |
| 3D | 3D video formats | |
| AV | Support | |
| Interface: | ||
| 1*HDMI 2.0 with CEC | Built-in HDMI 2.0 transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output | |
| 1*Mirco SD Card (TF) | TF cards (up to 32GB) | |
| 3*USB HOST | 2*USB 2.0,1*USB3.0,support USB DISK and USB HDD | |
| 1*SPDIF | SPDIF output | |
| 1*RJ45 | Ethernet:10/100M, standard RJ-45 | |
| 1*Digital display tube | Digital display tube | |
| 1*Power input | 5V/2.5A | |
